Monel Forged Fittings Supplier, Monel Valves Dealer,
Monel Flanges
Manufacturer in
India
D.R Steel is a well-known Monel Manufacturer in India. We are
experts in high-quality Monel
Grades, such as Monel 400 and Monel
K500, with strict adherence to International Standards. Our

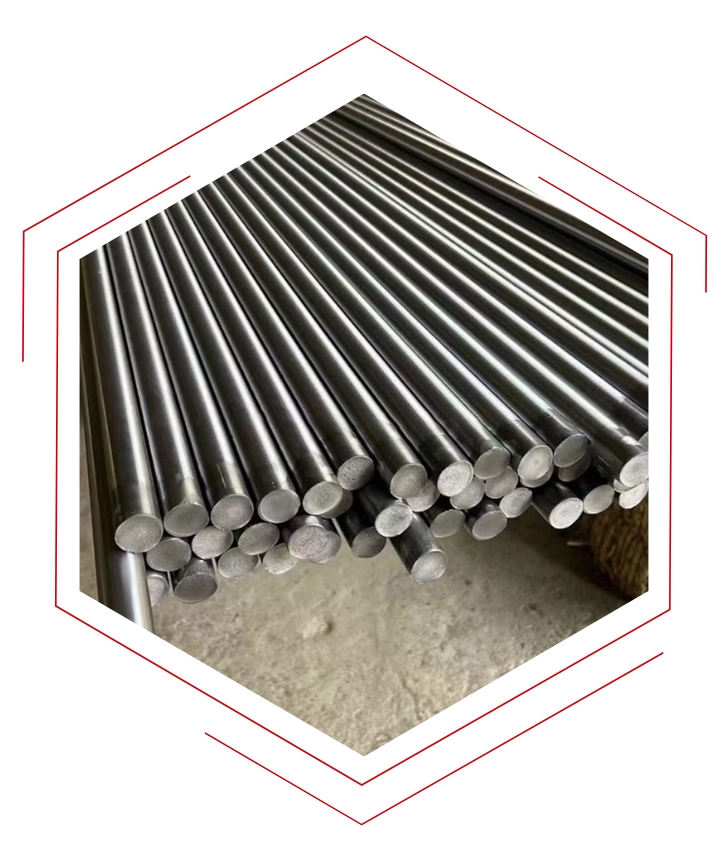

Monel Round Bar supplies high corrosion resistance to seawater, hydrofluoric and sulfuric
acids,
rendering it the material of choice for harsh marine and chemical-processing conditions. We are
known for our credibility and expertise.

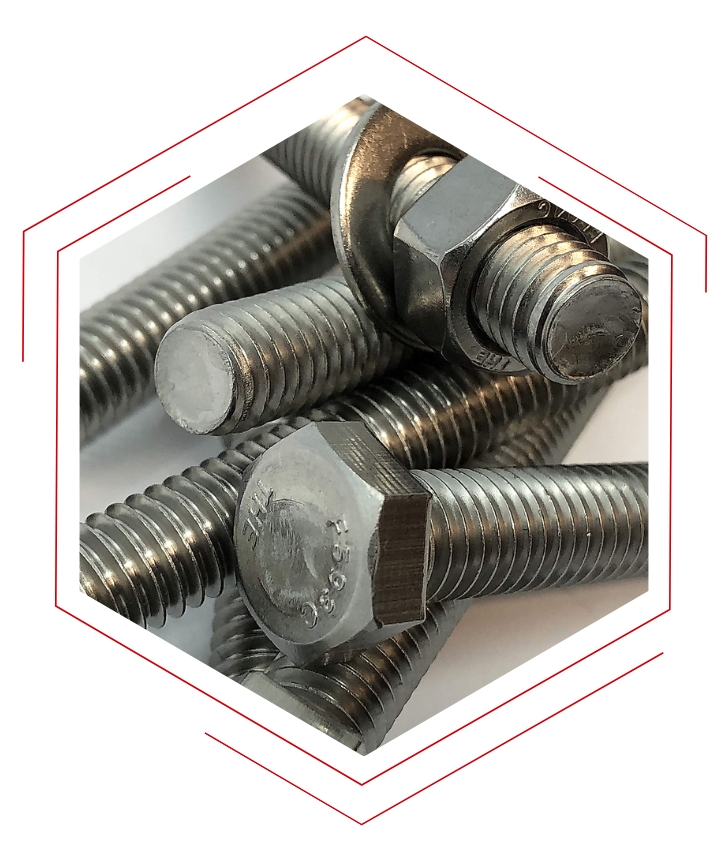

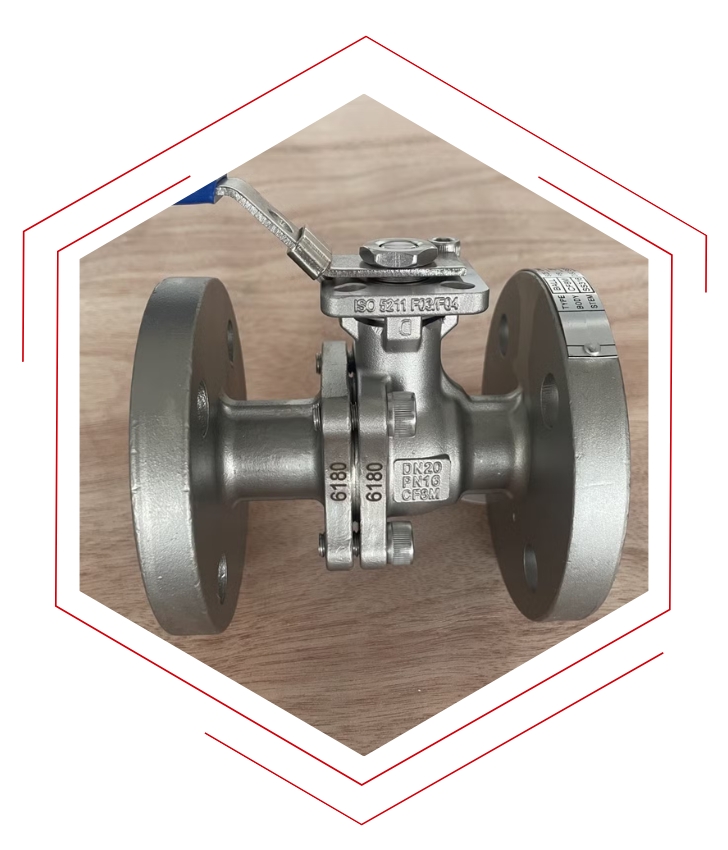

Monel Fasteners Manufacturer, Monel Valves Price,
Monel Flanges Supplier in India
D.R Steel is one of the prime Monel Manufacturer & Supplier in
India. We have specialized heat
treatment processes such as annealing and age-hardening of Monel K500 to deliver enhanced
mechanical
properties according to application requirements. We have testing laboratories for conducting
various quality tests, which include spectrometric/PMI analysis, impact tests, UT

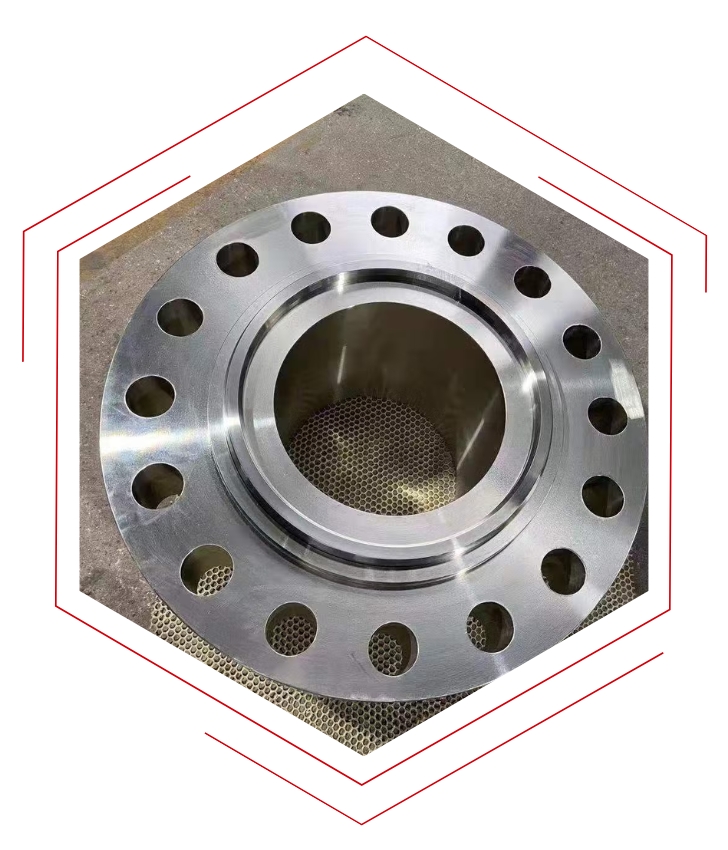

and ensure flawless performance of every Monel Flange. We are also a leading Flange Manufacturer
In India.
Monel Specification
| Monel Specification |
| Monel Grades |
Monel 400, Monel k500 |
| Standard |
ASTM, ASME, DIN, JIS, BS, and all International Standards |
| Monel Products |

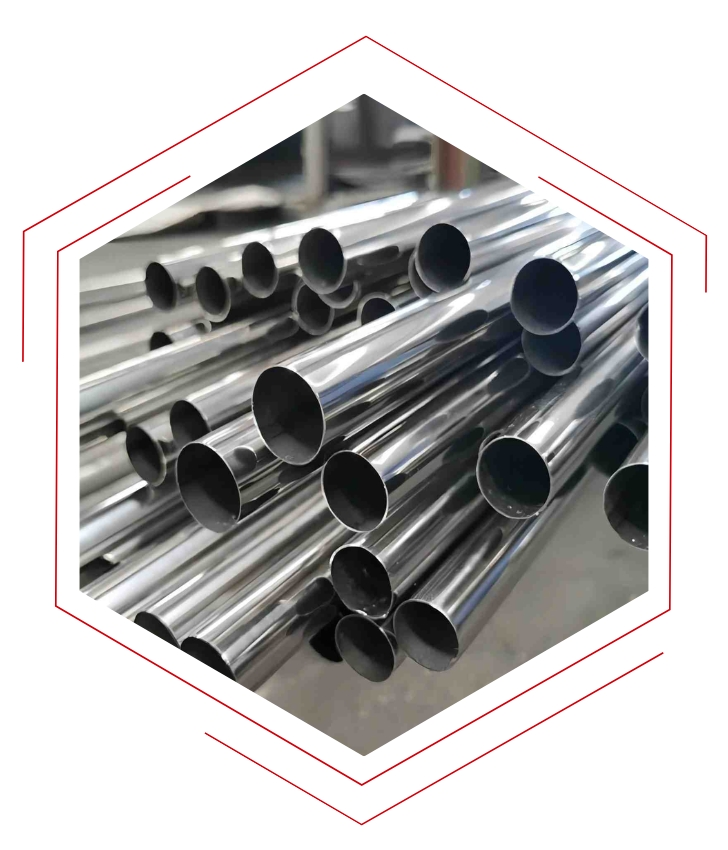

Monel Circle & Rings, Monel Pipes & Tubes, Monel Sheet & Plates,

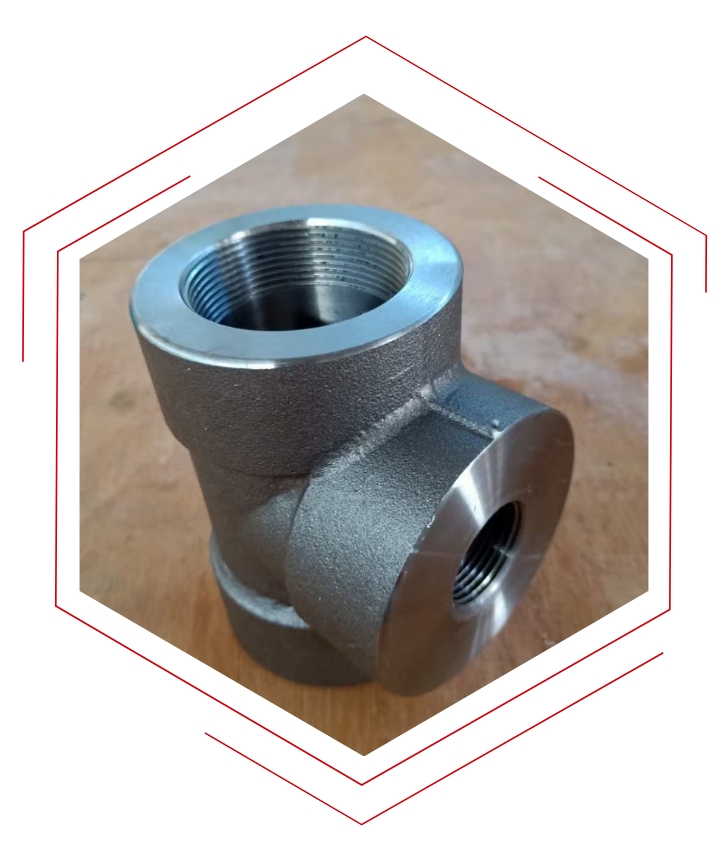

Monel Forged Fittings, and Monel Nut & Bolts, Monel Flat Bar, Monel

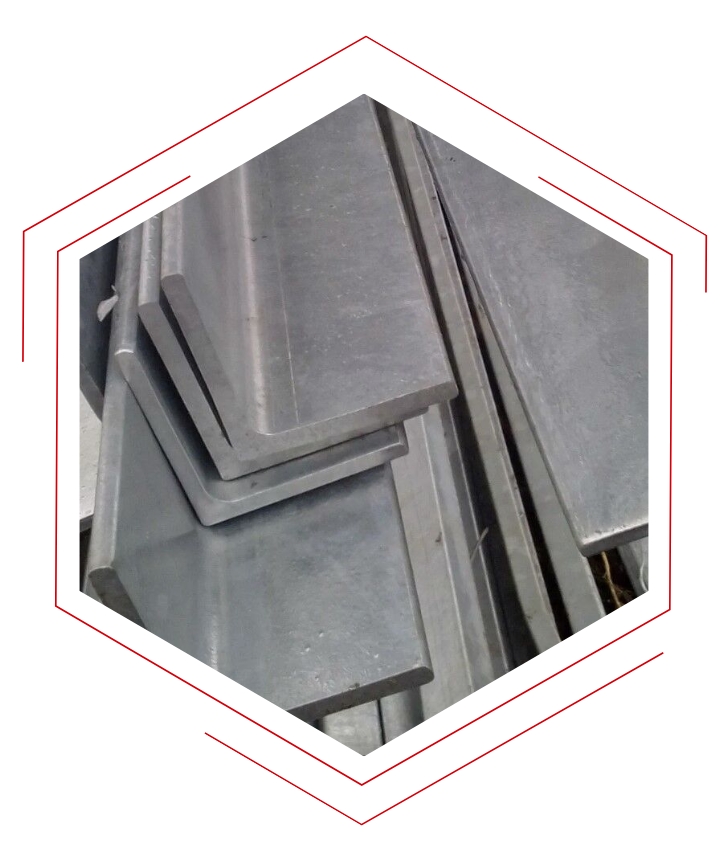

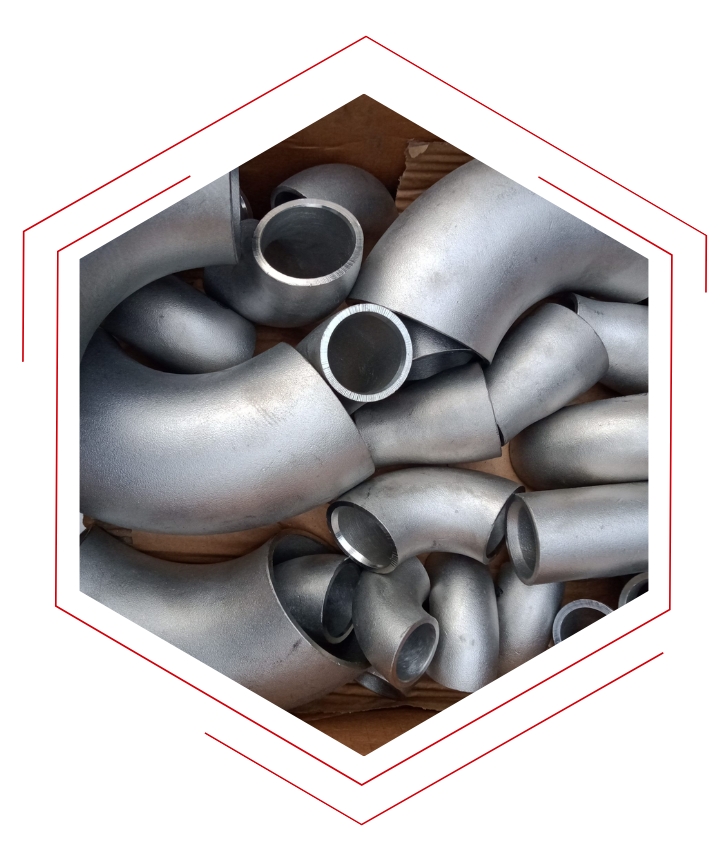

Forged Fittings, Monel Coil, Monel Pipe Fittings, Monel Angle &
Channels, Monel Flanges, Monel Round Bar and many more. |
Types of Monel
Chemical Composition of Monel
|
Chemical Composition
|
| Grade |
Ni (%) |
Cu (%) |
Fe (%) |
Mn (%) |
Other Elements |
| Monel 400 |
63.0 - 70.0 |
28.0 - 34.0 |
2.5 max |
2.0 max |
C: 0.3 max, Si: 0.5 max, S: 0.024 max |
| Monel K-500 |
63.0 - 70.0 |
27.0 - 33.0 |
2.0 max |
1.5 max |
Al: 2.3 - 3.15, Ti: 0.35 - 0.85, C: 0.25 max |
| Monel 401 |
39.0 - 45.0 |
53.0 - 57.0 |
1.0 max |
2.0 max |
C: 0.1 max, Si: 0.5 max, S: 0.02 max |
| Monel 404 |
50.0 - 57.0 |
43.0 - 47.0 |
0.5 max |
-- |
C: 0.1 max, Si: 0.25 max |
| Monel R-405 |
63.0 - 70.0 |
28.0 - 34.0 |
2.5 max |
2.0 max |
S: 0.025 - 0.060 (for machinability) |
Mechanical Properties of Monel
|
Mechanical Properties
|
| Grade |
Tensile Strength (MPa) |
Yield Strength (MPa) |
Elongation (%) |
Hardness (Brinell or Rockwell) |
Impact Toughness (J at -20°C) |
| Monel 400 |
480 - 550 |
170 - 240 |
35 - 40 |
130 - 180 HB |
High |
| Monel K-500 |
965 - 1100 |
690 - 860 |
20 - 30 |
250 - 300 HB |
High |
| Monel 401 |
415 - 550 |
140 - 240 |
30 - 40 |
120 - 180 HB |
-- |
| Monel 404 |
415 - 550 |
140 - 240 |
30 - 40 |
120 - 180 HB |
-- |
| Monel R-405 |
480 - 550 |
170 - 240 |
35 - 40 |
130 - 180 HB |
High |
Applications of Monel
01
Chemical
02
Oil & Gas
03
Pharmaceutical
04
Aerospace
05
Power Plant
06
Defence
We are Manufacturer, Supplier, Exporter and Stockist of Monel.
-D R Steels
